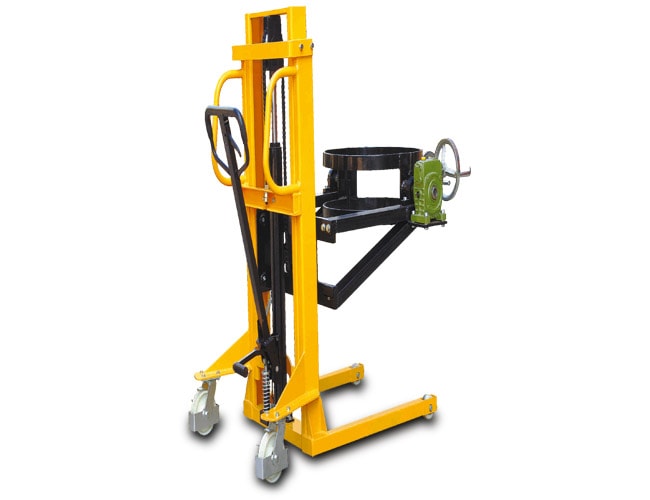

Drum Lifter

FEATURES

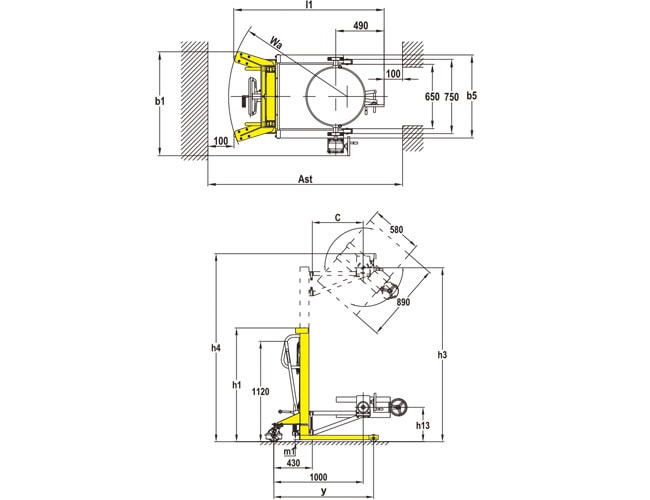

 Capacity  Q(kg) 350
 Load centre distance  c(mm) 570
 Wheelbase  y(mm) 1115
 Tyre size,front  (mm) φ80×36
 Tyre size rear  (mm) φ147×40
 Height,mast lowered  h1(mm) 1270/1490
 Max. lift height  h3(mm) 1945/2385
 Height,mast extended  h4(mm) 2100/2640
 Lowered fork height  h13(mm) 385
 Overall length  l1(mm) 1520
 Overall width  b1(mm) 1050
 Distance between fork-arms  b5(mm) 840
 Ground clearance,laden,below mast  m1(mm) 22
 Turning radius  Wa(mm) 1200
 Lowering speed,laden/unladen  mm/s manual control
Service weight kg 235
