Vipro Enterprises Ltd

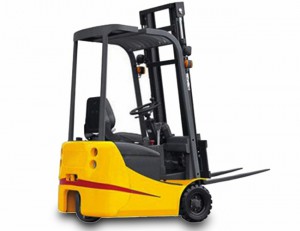

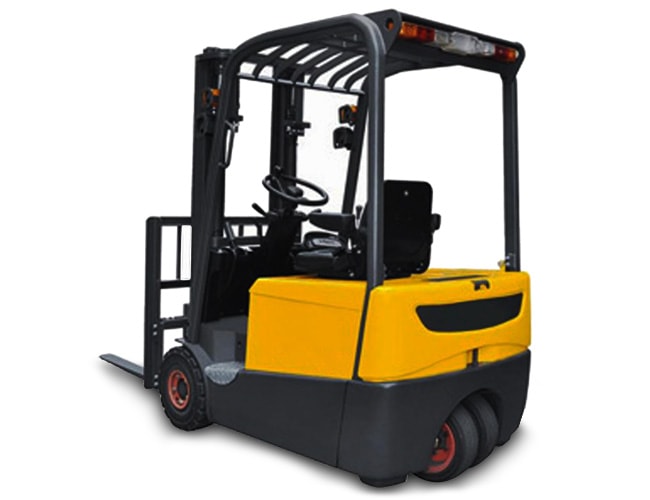

3 Wheel Electric Forklift

FEATURES

Advantages:

  • Germany imported driving axle.
  • The United States imported AC control system CURTIS with sensitive reaction。
  • Imported multifunctional liquid crystal instrument has intelligent display for fault code, battery status, forklift running information.
  • AC driving motor: compact construe, high performance, regenerative braking .
  • Top-ranking running speed, loading speed and grade ability.
  • Running speed: unload 15km/h load 14km/h
  • Lifting speed: unload 450mm/s load 290mm/s
  • Grade ability: unload 20% load 15%
  • Three running modes to choose according to different needs:low speed, moderate speed and high speed.
  • Wet disk brake can make the forklift break stably, ensures high durability and safety.
  • lateral turning radius is only 1552mm and minimum right angle stacking aisle is only 3220mm.

Ergonomics:

  • With two step pedal easy to get into the driving cab.
  • Adjustable steering wheel and the seat , the driver can adjust the position according to his need.
  • Integrated light switch and steering signal rod.
  • ABS instrument board in the driving-box is durable and beautiful.
  • The design of the controlling lever position fit the Ergonomic principles which can reduce the driver’s fatigue.
  • Better front vision
    The instrument is on the right side of the driving-box which provides better front vision , ensure safety operating.
  • Emergency power cut off plug
    The plug is on the left side of the driver’s seat which is used for emergency stop.

Convenience in maintenance:

  • Easy maintained controller and steering potentiometer
  • Maintenance free wet disk brake
    Different from traditional Drum braking system, this system doesn’t need to maintain extensively and regularly except for oil change, so it reduces maintenance cost.
  • Lifting and driving AC motors without carbon brush almost has no need to maintain,
    which greatly reduce maintenance cost. And they all adopt external encoder, so the maintenance and service is more convenient.
  • Over discharge protecting system
    While the battery discharges 80%, the instrument warming light will light. Then it needs to lower the running and lifting speed to preserve the battery’s using time
  • Self-checking system
    With The fault code displayed in the instrument panel, it is very easy to control operation and find out the fault reason.
  • Braking oil cup is installed on the instrument panel, so as to check and add braking oil conveniently.
  • Side way battery box is easy to maintain
    Batteries located in the lowest part of frame improves forklift’s running stability and makes batteries changing safer and more convenient, also the whole truck’s maintenance becomes easy.
