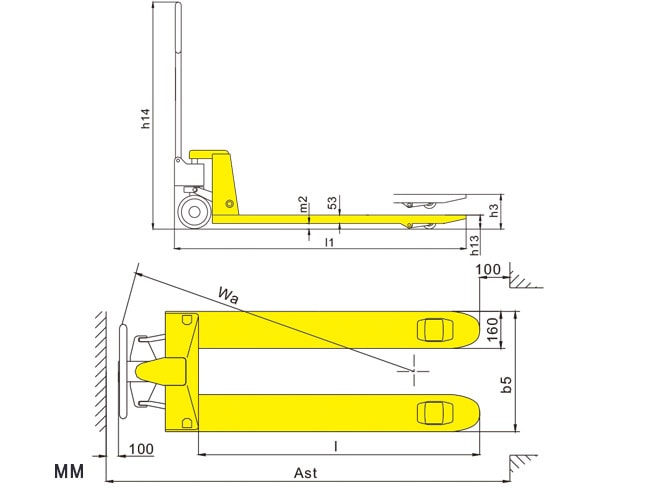

Classic Hand Pallet Truck

• Most standard and popular model with capacity 2500 – 3500kgs.
• Supporting base : the new type is thicker in case of bending problems.
• Forks: the thickness of the new type is 53mm to make strength increased.
• Great innovation on part of wheel frame:
  A. The new type wheel frame enhances strength to prevent distortion problems.
  B. The new type frame without roll ring & roll sheath.
  C. Adopts double-spring pins construction with strengthening ribbing under triangle to prevent pin snipping problems.
• With Copping Supporting NOG & strengthening ribbing under top triangle cover.
• Complete pump design with reliable leak-proof pump eliminating maintenance and extending the service time. 210 steering arc, and small turning radius.
• Fork Lowering speed is controllable, operated by hand control and foot pedal.
• Ergonomic rubber wrapped handle, which is comfortable and convenient to operate.
• Entry / exit roller, more freely travel.
• Equipped with over-load valve, with long service time.
• 3 position hand control – Raise, Lower, Neutral.
• 12 lubrication grease nipples on all movable parts for easy maintenance.
• Adjustable pump cap ensures a long service life.
• Ergonomic large rubber handle with three control lever.
• Options

1) Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.
2) Fork length: 800mm, 900mm, 1000mm.
3) Foot pedal release.
4) Pump color: black painting, silver painting, silver galvanized.
