Standard Hand Pallet Truck
FEATURES
- Integrated pump without welding , no any leaking problems.
- Frame force is more reasonable , and the strength is more reliable.
- Handle seat has hole it is more convenient for installation of control chain.
- Forks lowering speed is controllable, with overload valve to avoid overloading.
- Remark: Special size for width and length can be made according to customer’s requirement.
- Option:
1) steering wheel 200mm (fork wheel 80mm) are available.
2) Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.
3) Fork length:800mm,900mm,1000mm,1100mm.
4) Foot pedal release.
5)Pump color: black paiting.
6)Quick lift (double speed lifting)

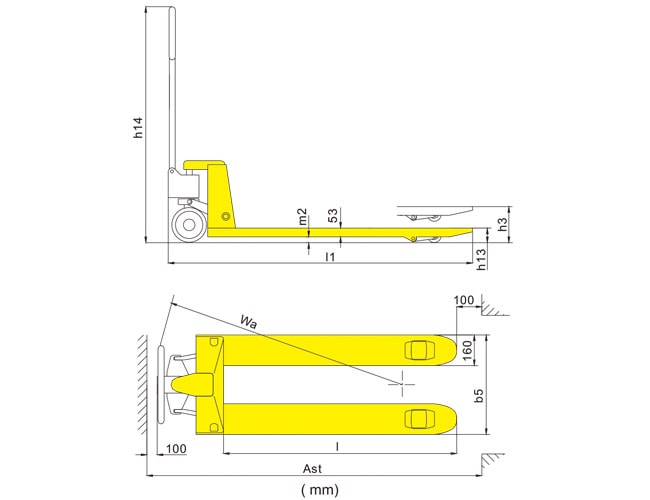

| Capacity | Q(kg) | 2500 | 2500 |
| Lowered fork height | H13(mm) | 85 | 75 |
| steering wheel | mm | φ200 | φ180 |
| fork wheel single | mm | φ80×93 | φ74×93 |
| fork wheel double | mm | φ80×70 | φ74×70 |
| Max. Lifting height | h3(mm) | 195 | 185 |
| Height of tiller in drive position min./max. | h14(mm) | 1214 | 1214 |
| Overall length | l1(mm) | 1543/1613 | 1543/1613 |
| Fork length | l(mm) | 1150/1220 | 1150/1220 |
| Width overall forks | b5(mm) | 520/550/685 | 520/550/685 |
| Ground clearance, center of wheelbase | m2(mm) | 32 | 22 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1743/1813 | 1743/1813 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 1793/1813 | 1793/1813 |
| Turning radius | Wa(mm) | 1276/1346 | 1276/1346 |
| Service weight | kg | 58-70 | 58-70 |
