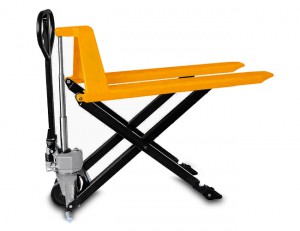

By High Lift Pallet Truck
FEATURES
- Ideal design with numerous possibilities makes this unit very suitable as pallet truck/scissor lift table.
- Telescopic jack composes of 3 piston rods creating light pumping force giving great rigidity.
- Support legs come into operation automatically.
- It prevents the unit from moving when the forks are raised to keep the safety of the operator.
- Truck automatically slows the descending speed when heavy goods loaded to prevent cargo damage.
- 210 degree turning radius.
- 2 lateral stabilizers when raised ensure good stability.

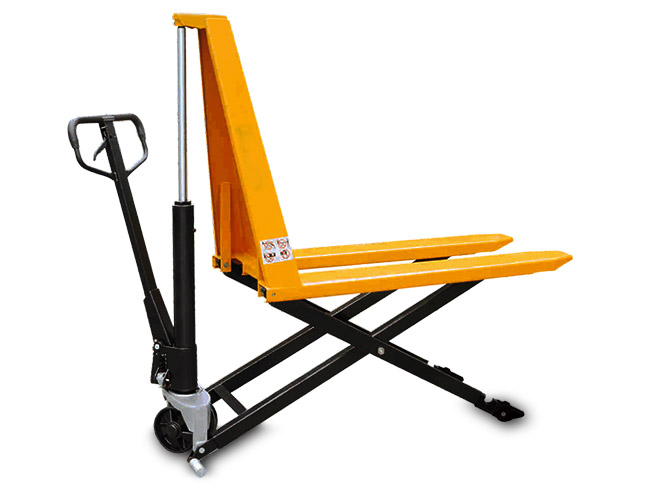

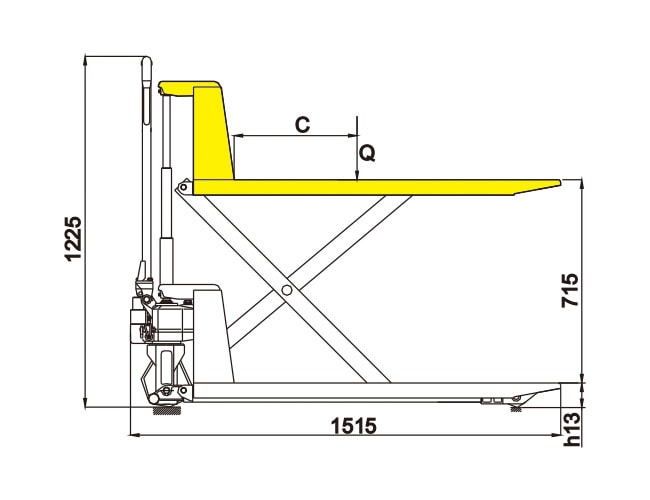

High Lift Pallet Truck Two
- Improved safety: Automatic activation of self adjusting stabilizers when lifting loads higher than 400mm for maximum stability.
- Great stability: Extra long front legs increase the stability when handling unevenly loaded pallets.
- Quick-lift operation: Quick-lift function doubles the lifting speed when lifting loads less than 250kg
| Capacity | Q(kg) | 1000 |
| Lowered fork height | h13(mm) | 85 |
| Steering wheel | mm | Φ180X50 |
| Fork wheel | mm | Φ74X50 |
| Fork length | l(mm) | 1150 |
| Width overall forks | b5(mm) | 520/550/685 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1715 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 1765 |
| Turning radius | Wa(mm) | 1360 |
| Service weight | kg | 108-112 |

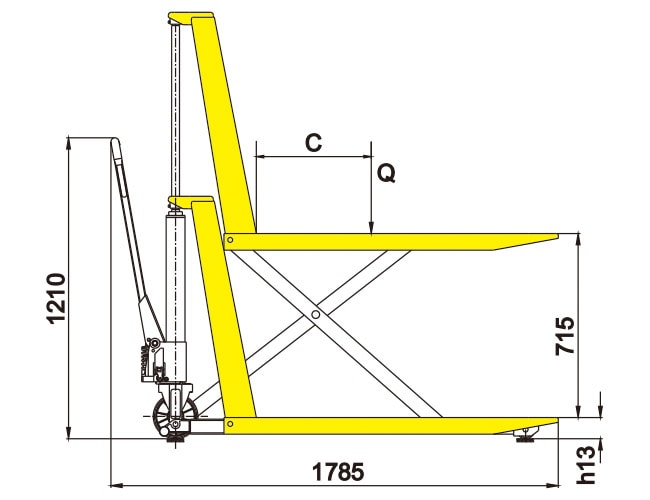

High Lift Pallet Truck Two
| Capacity | Q(kg) | 1000 |
| Lowered fork height | h13(mm) | 85 |
| Steering wheel | mm | Φ180X50 |
| Fork wheel | mm | Φ74X50 |
| Fork length | l(mm) | 1220 |
| Width overall forks | b5(mm) | 550/685 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1985 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 1985 |
| Turning radius | Wa(mm) | 1670 |
| Service weight | kg | 112 |
