Vipro Enterprises Ltd
By Economic Design Pallet Truck
FEATURES
- Standard epoxy powder coat finish which is resistant to chips and normal corrosion.
- Exceptionally strong but light weight steel construction, service weight is only 55kgs.
- With welded joints and reinforced fork tips for most durability in the toughest applications.
- 3 position hand control – Raise, Lower, Neutral.
- Excellent turning angle of 190 degrees facilities.
- Number of pump strokes 12 times, lift height per stroke 11mm.
- Reliable oil leak-proof hydraulic system.
- Option 1:- Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.
- Option 2:- Fork length: 800mm, 900mm, 1000mm,1100mm.

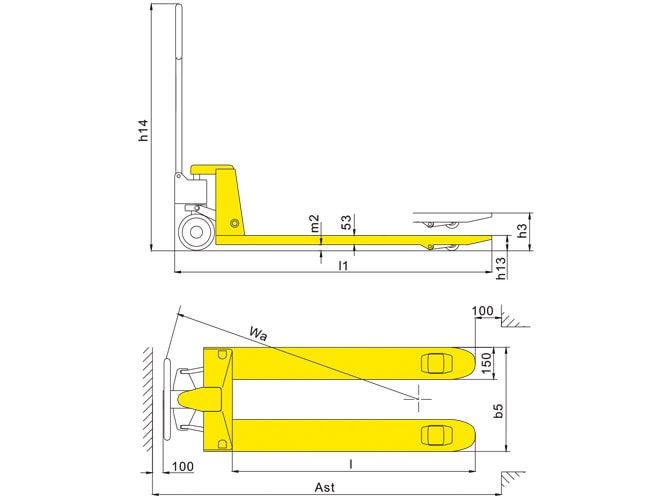

| Capacity | Q(kg) | 2000 |
| Lowered fork height | h13(mm) | 75 |
| Steering wheel | mm | φ160 |
| Fork wheel single | mm | φ70×80 |
| Fork wheel tandem | mm | φ70×60 |
| Max. lift height | h3(mm) | 190 |
| Total height | h14(mm) | 1176.5 |
| Overall length | l1(mm) | 1520/1590 |
| Fork length | l(mm) | 1150/1220 |
| Width overall forks | b5(mm) | 520/550/680 |
| Ground clearance,centre of wheelbase | m2(mm) | 22 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1720/1790 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 1770/1790 |
| Turning radius | Wa(mm) | 1265/1335 |
| Service weight | kg | 55-60 |
