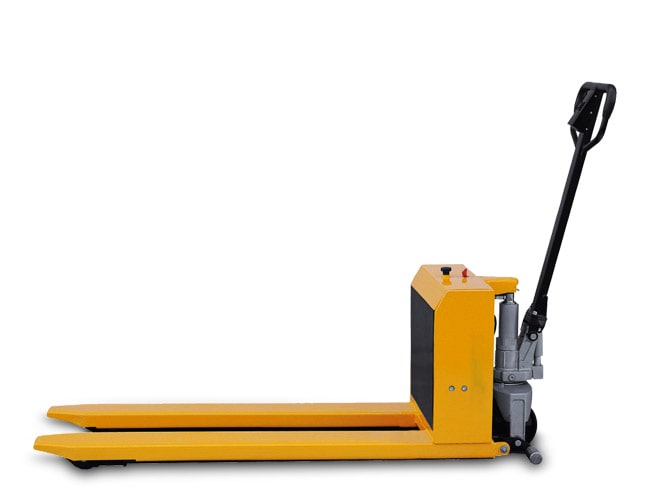

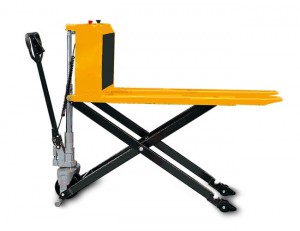

High Lift Pallet Truck

FEATURES

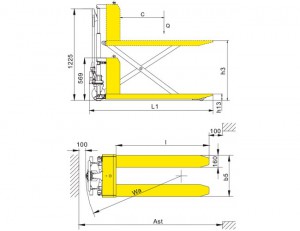

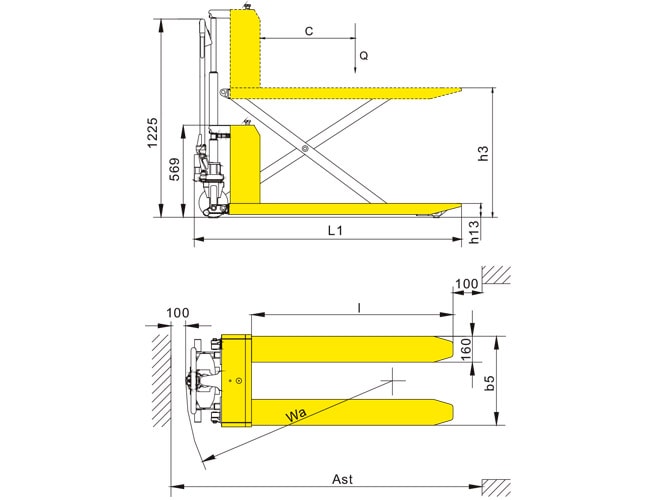

 Capacity  Q(kg) 1000
 Lowered fork height  h13(mm) 85
 Steering wheel  mm Φ180×50
 Fork wheel  mm Φ74×50
 Max. lift height  h3(mm) 800
 Overall length  L1(mm) 1652
 Fork length  l(mm) 1245
 Width overall forks  b5(mm) 550/685
 Aisle width for pallets 1000×1200 crossways  Ast(mm) 1852
 Aisle width for pallets 800×1200 lengthways  Ast(mm) 1852
 Turning radius  Wa(mm) 1480
 Lift motor rating at S3 15%  kW 0.7
 Battery voltage,nominal capacity K10  V/Ah 12/100
 Battery weight  kg 31
 Service weight (with battery)  kg 181
