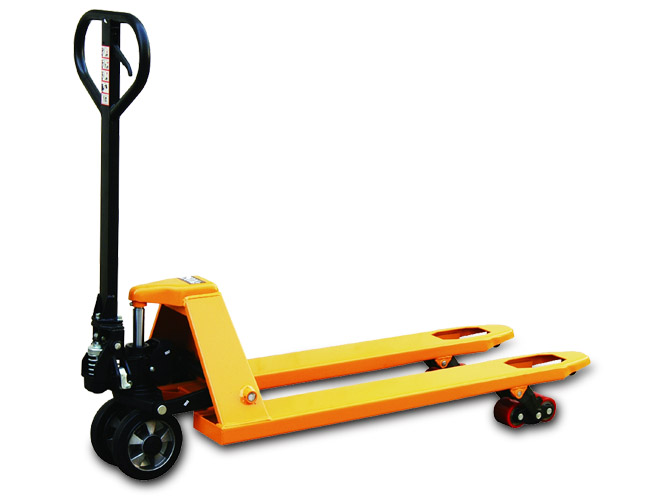

By Heavy Duty Hand Pallet Truck
FEATURES
- Standard single speed pump and light service weight, but big load capacity 3000kgs.
- Design on the base of 3 year service time,which can be extended up to 5 years.
- Compact appearance, complete rocker arms, ensure the whole truck averaged pressed.
- Full sealed pump,easy to maintain.
- Simplified spare parts, higher performance with low repair cost.
- Option:-
(1)Double Speed Pump
(2)Nylon wheel,polyurethane wheel,rubber wheel,single fork roller or tandem fork rollers
(3)Fork length:800mm,900mm,1000mm,1100mm.

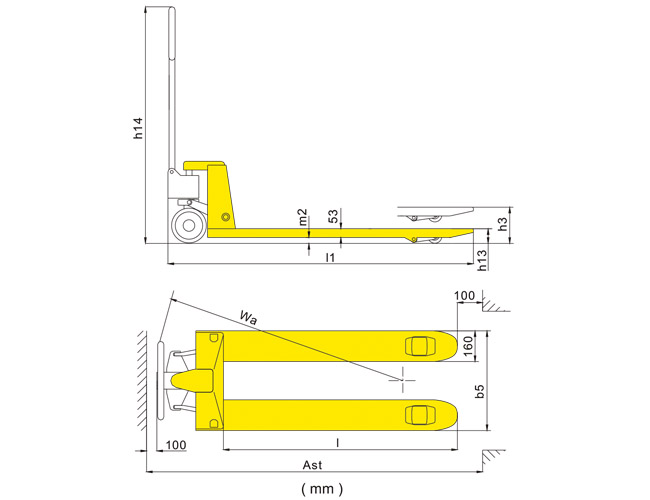

| Capacity | Q(kg) | 2000/2500/3000 | |
| Lowered fork height | h13(mm) | 85 | 75 |
| Steering wheel | mm | φ200 | φ180 |
| Fork wheel single | mm | φ80×93 | φ74×93 |
| Fork wheel tandem | mm | φ80×70 | φ74×70 |
| Max. lift height | h3(mm) | 200 | 190 |
| Total height | h14(mm) | 1232 | 1222 |
| Overall length | l1(mm) | 1533/1603 | 1533/1603 |
| Fork length | l(mm) | 1150/1220 | 1150/1220 |
| Width overall forks | b5(mm) | 520/550/685 | 520/550/685 |
| Ground clearance, centre of wheelbase | m2(mm) | 32 | 22 |
| Aisle width for pallets 1000×1200 crossays | Ast(mm) | 1733/1803 | 1733/1803 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 1783/1803 | 1783/1803 |
| Turning radius | Wa(mm) | 1265/1335 | 1265/1335 |
| Service weight | kg | 55-70 | 55-70 |
